Failed to Create the Audit File

Categories: News, Professional, SSC
Comments: No Comments
Published on: December 31, 2017

One day while checking things for clients, I happened across a fun little error message – “SQL Server Audit failed to create the audit file“. It just so happens that the audit had been working and then suddenly stopped and started flooding the error logs with this message.

Why would it suddenly stop working? Well, it says in the error that the disk might be full or that there may be a permissions issue. So, at least there are some possibilities provided by the message. Granted – neither of these options is very settling for a DBA.

FAILED

While reading the first occurrence of this error message, you notice that the log is bombarded with 20 more messages of the same nature. Before you can even scroll to catch up with the error messages, another 30 have appeared. It looks like the server is starting to get busier with the business users starting to run through their daily routines. You need a fix and you need it quick. You copy and paste the error to another screen for reference and then close the log to remove that distraction. Here is a copy of that error message.

SQL Server Audit failed to create the audit file ‘C:\Database\XE\DBA_Server_Audit_906B13C3-8F3F-4CFC-A391-20C5F7CAD698.sqlaudit’. Make sure that the disk is not full and that the SQL Server service account has the required permissions to create and write to the file.

Let’s try the suggestions from the error message starting with security. The SQL Server Service account needs to have permissions to the directory where the audit is being stored. Looking in that directory, you can see that the audit was obviously successful at one point because there are audit files in the directory. In addition, the audit just barely stopped working and you are certain nothing has changed.

Regardless of that, you proceed to investigate the permissions settings on the directory. Looking at the directory permissions, you are able to fully confirm that the service account does indeed have adequate permissions to the folder.

So we can rule out the permissions having changed as being a viable contender for causing this problem. As you start to proceed to investigate the next option, you start to worry that users are being prevented from doing their jobs because of the flood of errors. For sanity sake, you run a few quick checks to verify things look normal on the server from an activity standpoint. You also check your ticket queues and find there is nothing alarming in there.

Phwew!

Still Trying

After checking the ticket queues and server activity, you bounce right back to your next check point – disk space. This is an easier check than the permissions. You have no mount points and you can verify the disk space with a quick glance in windows explorer. You look in windows explorer and can see that your C drive where the audits are being stored has 50{529e71a51265b45c1f7f96357a70e3116ccf61cf0135f67b2aa293699de35170} free space (or roughly 200GB).

Well, that is obviously not the problem either. You know the audit was working as recently as 30 minutes before you started troubleshooting and the errors did not start until almost immediately before you started checking the problem. What could it be? Afterall, you have 35 audit files in the audit folder for the trace. Then, suddenly, it hits you. There are 35 files. The trace was configured for 35 files with no rollover.

In this case, the easy fix is to move a bunch of files to an archive folder. As soon as that is done, a new message will appear in the error logs:

Message
Audit: Server Audit: 65536, State changed from: TARGET_CREATION_FAILED to: STARTED

Now to go change the audit process to make it a little more robust.

When dealing with SQL Audit, max_files is an important setting. Here is what msdn has to say about the setting.

MAX_FILES =integer

Specifies the maximum number of audit files that can be created. Does not rollover to the first file when the limit is reached. When the MAX_FILES limit is reached, any action that causes additional audit events to be generated will fail with an error.

This article is just one of several audit related articles on this blog. You can read more about some of the different ways to audit along with different perspectives from this link.

Wrap

Auditing is a necessity but it doesn’t need to be alarming or scary. Sometimes, we can become a little bit alarmed when an error occurs. We just need to keep our cool and trust our skills and abilities to troubleshoot in the event an audit fails. This article will hopefully show some of that process and help to provide a cool demeanor.

Audit Domain Group and User Permissions

Comments: 3 Comments
Published on: December 29, 2017

No matter how simple the task or how versed we are with doing a security audit, it seems like we can always stand to learn just a little bit more. No matter how many times we hand an audit report over to the auditor, there is always “just one” more report we have to provide.

I know it seems like I am almost always running some sort of audit report. Whether it is to audit which user may have changed something or what access a user may have overall to the system, there is always a need for more audit.

One of the aspects of an audit that I have not yet written about is with regards to Domain Groups. It is a very common practice to grant access to SQL Server via Domain Group membership. We can easily see which groups have which access, but how often do we try to figure out who is in the group?

When you do try to figure out who is in a Domain Group, do you do like so many DBAs that I know and yell across a cubicle wall to the AD guys and ask them to look it up? Maybe you fire off an email to the AD Admins and ask them to do the grunt work for you. Nobody will shame you for doing either of those two methods. I mean, most people probably toss it over the fence in one way or another.

Fence



It is not a difficult stretch to imagine asking somebody who is an expert at a technology to see if they could get a quick answer to your question for you. That said, it is also really nice when you can service those types of questions by yourself and thus save everybody a little time and effort. Luckily, there is at least one easy way for the SQL Server professional to try and answer questions about group membership.

Microsoft has included a method for the DBA to try and capture information about AD related accounts. This method comes in the form of an extended procedure called xp_logininfo. This procedure can tell me the members of domain groups, the access level the account has, and also validate if the account is still active in AD.

Suppose you needed to determine all of the accounts that may have access to SQL Server, via direct Login or via group membership. In addition, you must find out which of the accounts are no longer valid in AD. I have a script that will do just that by first perusing the groups and then cycling through each of the User accounts produced from the group perusal.

Let’s take a look at that script.

You will see here that I have a couple of cursors built into this script. This is helping me cycle through first the groups and then the users. As I cycle through each user, I am able to determine the validity of the account. Not only will I know if an AD account is dead and needs to be removed from SQL Server, but I will also know if a Domain Group no longer exists.

This little script has proven to be a major time saver with some clients. Not only has it saved me some time, but it has also helped to figure out how a developer was able to perform sysadmin functions on a prod box even though his account did not have sysadmin access granted explicitly.

Audit All Select Statements

audit_selectLegislation and regulation sometimes dictates that certain activities must be tracked within a database. On occasion, it will be required that queries be audited and tracked to reach compliance with the legislation or regulation. To achieve this compliance, this article will demonstrate how to use Extended Events to audit statements being executed within the database.

Over the course of a few recent articles, I have included little hints here and there alluding to this article. In fact, now would be a good time to review one of these articles in preparation for what I will be sharing today. Take a moment to refresh your memory on this article about finding the right event – here.

Backstory

I have to be a little honest here. Prior to somebody asking how they could possibly achieve a statement audit via extended events, I had not considered it as a tool for the job. I would have relied on Audit (which is Extended Event related), or some home grown set of triggers. In this particular request, Audit was not fulfilling the want and custom triggers was not an option. Another option might have included the purchase of third party software but there are times when budget does not allow for nice expensive shiny software.

So, with a little prodding, I hopped into the metadata and poked around a bit to see what I could come up with to achieve this low-budget audit solution.

Low-Budget Audit

Using the handy scripts I have shown previously (and that I just linked to), I was able to explore the Extended Events metadata and find just what may work properly. The requirements in this case were that it needed to be done in XEvents and that it must capture SELECT statements. To find the events that seemed plausible for this task, I plugged the term “SELECT” into my queries as follows:

From this query, there was really only one event that made any sense for my task – “degree_of_parallelism”. There was another event returned in the result set, but it made no sense to me as a possible candidate event for auditing select statements (it was ucs_transmitter_reclassify). From the results, I then took the keyword associated to degree_of_parallelism to see what else might be pertinent. I plugged that keyword “execution” into the following query:

The results of the previous query will be quite a bit more substantial. Some make sense to include in the audit and some do not. I opted to not included any of the events to keep things as clean and simple as possible.

More Requirements

I now have the base events covered that I want to use for my audit. That said, my base requirements are just not extensive enough. When I audit something, I really want to know who did it, when it was done, where it originated and what was it that they did. The degree_of_parallelism event will capture all of the select statements but it does not meet these additional requirements.

In order to meet the additional requirements, I will attach a handful of actions to the degree_of_parallelism event. The addition of the actions will provide all of the data I want and need. Combine the event and actions together, I came up with the following session definition.

This is a very simple session to pull together. I have added a few things in on my predicate to help limit the scope of the session to the AdventureWorks2014 database and to make sure I am not trapping events related to the code completion tools shown. Notice here also that there is a potential chance to optimize this session. Can you find it? Hint: It may be in the predicate. Second hint: re-read this article about predicates.

Now the trick to what makes this work to audit only the select statements is right there in the predicate. I have instructed the session to ignore any statement_type that is not a value of 1. As it turns out, statement_type of 1 is a select statement. To see how these values map, here is a quick query and the correlated results.

dop_statementtype

Based on these values, should you want to audit a different query type, just change the predicate to use the map_key value that corresponds to the desired statement type.

Testing

Testing this session is rather simple. Here is a quick and dirty script to help test it.

Conclusion

Building low cost solutions is a common requirement for the data professional. When given the opportunity, try things out to see what you can build to provide the solution. In this case, I have demonstrated how Extended Events, however unlikely a candidate, can provide a working solution to help audit any select statements occurring within your database.

This has been another article in the 60 Days of XE series. If you have missed any of the articles, or just want a refresher, check out the TOC.

Auditing Needs Reporting

Comments: No Comments
Published on: October 13, 2015

TSQL2sDay



Welcome to the second Tuesday of the month. And in the database world of SQL Server and the SQL Server community, that means it is time for TSQL2SDAY. This month the host is Sebastian Meine (blog / twitter), and the topic that he wants us to write about is: “Strategies for managing an enterprise”. Specifically, Sebastian has requested that everybody contribute articles about auditing. Auditing doesn’t have to be just “another boring topic”, rather it can be interesting and there is a lot to auditing.

For me, just like I did last month, I will be just doing a real quick entry. I have been more focused on my 60 Days of Extended Events series and was looking for something that might tie into both really well that won’t necessarily be covered in the series. Since I have auditing scheduled for later in the series, I was hoping to find something that meets both the XE topic and the topic of Auditing.

audit_wordcloudNo matter the mechanism used to capture the data to fulfill the “investigation” phase of the audit, if the data is not analyzed and reports generated, then the audit did not happen. With that in mind, I settled on a quick intro in how to get the audit data in order to generate reports.

Reporting

An audit can cover just about any concept, phase, action within a database. If you want to monitor and track performance and decide to store various performance metrics, that is an audit for all intents and purposes. If you are more interested in tracking the access patterns and sources of the sa login, the trapping and storing of that data would also be an audit. The data is different between the two, but the base concept boils down to the same thing. Data concerning the operations or interactions within the system is being trapped and recorded somewhere.

That said, it would be an incomplete audit if all that is done is to trap the data. If the data is never reviewed, how can one be certain the requirements are being met for that particular data trapping exercise? In other words, unless the data is analysed and some sort of report is generated from the exercise it is pretty fruitless and just a waste of resources.

There is a plenitude of means to capture data to create an audit. Some of those means were mentioned on Sebastian’s invite to the blog party. I want to focus on just two of those means because of how closely they are related – SQL Server Audits and Extended Events. And as I previously stated, I really only want to get into the how behind getting to the audit data. Once the data is able to be retrieved, then generating a report is only bound by the imagination of the intended consumer of the report.

SQL Server Audits

Audits from within SQL Server was a feature introduced at the same time as Extended Events (with SQL Server 2008). In addition to being released at the same time, some of the metadata is recorded with the XEvents metadata. Even some of the terminology is the same. When looking deep down into it, one can even find all of the targets for Audits listed within the XEvents objects.

Speaking of Targets, looking at the documentation for audits, one will see this about the Targets:

The results of an audit are sent to a target, which can be a file, the Windows Security event log, or the Windows Application event log. Logs must be reviewed and archived periodically to make sure that the target has sufficient space to write additional records.

That doesn’t look terribly different from what we have seen with XEvents thus far. Well, except for the addition of the Security and Application Event Logs. But the Target concept is well within reason and what we have become accustomed to seeing.

If the audit data is being written out to one of the event logs, it would be reasonable to expect that one knows how to find and read them. The focus today will be on the file target. I’m going to focus strictly on that with some very basic examples here.

I happen to have an Audit running on my SQL Server instance currently. I am not going to dive into how to create the audit. Suffice it to say the audit name in this case is “TSQLTuesday_Audit”. This audit is being written out to a file with rollover. In order for me to access the data in the audit file(s), I need to employ the use of a function (which is strikingly similar to the function used to read XE file targets) called fn_get_audit_file. The name is very simple and task oriented – making it pretty easy to remember.

Using the audit I mentioned and this function, I would get a query such as the following to read that data. Oh, and the audit in question is set to track the LOGIN_CHANGE_PASSWORD_GROUP event.

There are some tweaks that can be made to this, but I will defer to the 60 day XE series where I cover some of the tweaks that could/should be made to the basic form of the query when reading event files / audit files.

XE Audits

Well, truth be told, this one is a bit of trickery. Just as I mentioned in the preceding paragraph, I am going to defer to the 60 day series. In that series I cover in detail how to read the data from the XE file target. Suffice it to say, the method for reading the XE file target is very similar to the one just shown for reading an Audit file. In the case of XEvents, the function name is sys.fn_xe_file_target_read_file.

Capturing data to track performance, access patterns, policy adherence, or other processes is insufficient for an audit by itself. No audit is complete unless data analysis and reporting is attached to the audit. In this article, I introduced how to get to this data which will lead you down the path to creating fantastic reports.

Audit who Dropped the Database

In the first article on this topic (which can be read here), I discussed the problem of having a database get dropped and the need to find out who dropped the database and when they dropped it.  In that article, I demonstrated how the information (at least some of it) could be found through querying the default trace.  It is a good enough solution if you have not disabled the default trace.

On the other hand, what if you need to do something more flexible?  What if you wanted to track this down through a more robust tool such as extended events?  XEvents has what you need to be able to properly track these types of events.  In this article, I share how to use Extended Events to capture this kind of audit data.

There are a few things to note with this event session.  First is that I am trapping two separate events: sqlserver.object_deleted and sqlserver.object_created.  The next important note is that I have to enable a flag on both events to trap the database name.  That is done like this: SET collect_database_name = (1).  Last note is something that should be noticed after enabling the session and performing a couple of trials.  The events I am using will fire twice for every DROP or CREATE operation.  This happens due to the ddl_phase for each.  There is one event fired for the start of the event and then another event when the event commits or hits a rollback.  Because of this, I am outputting the ddl_phase in my query to read from the session data.  Let’s run a quick test and see how this data can be queried.

Also of importance is to note the file path for the output file. If the path does not exist or you do not have permissions to the directory, you will get an error message and the session will not create.

Nice and simple for a test. This should be enough to have trapped some data for our XEvent session.  Let’s parse the data and take a look.

With the XEvent session started, and a database that has been created and dropped, this last query will produce some data to help track who has been adding or removing databases from your SQL Instance.  If you have run the example code, you should see data very similar to what is shown in this next image.

xe_results

In the attached image, I have separated the pair of statements for the DB create from the pair of statements for the DB drop (recall that I mentioned each will fire twice).  I hope this serves you well in your attempts to reign in the control of your environment and discover who may be creating rogue databases or even dropping the databases that are essential to the business.  Enjoy!!

Audit Schema Change Report

Comments: 4 Comments
Published on: March 11, 2015

In a recent article on SSG, I discussed how to use Extended Events to function in a Profiler like fashion.  You can read about that here.  I recommend reading that article first because it helps to lay some of the groundwork for this article.

Within Management Studio, from a righ-click context menu, there is an option to run a report called “Schema Changes History”.  The name of this report might indicate that there is some means to find when a change occurred in the schema and potentially what the change was as well as who made the change.  It does say “Schema Changes History” after-all.

If you run the report, you would be able to see a report similar to the following.

Change_Report



This looks like it could be a pretty useful report.  If I drill into the collapsed items, I can get better information.  But, how exactly is this report producing this kind of data?  I don’t have a database audit running to trap this information.  I also don’t have SSDT-BI installed, so I can’t export the report and check the report definition.

I could run a trace and refresh the report data and see what pops there.  I would really hate to use Profiler though, and I really don’t want to go through the hassle of creating a server side trace to figure out the source data definitions.  Then the lightbulb moment occurs.  I already have an XE session that can trace the SQL queries just like Profiler.  Why not use a better tool to do the job and satisfy my curiosity at the same time?

So, go read that article, I wrote for SSG, to get the XE session definition in order to follow along a little better.  With that XEvent session running, I can refresh the report data and start to evaluate what is happening in order to produce the Audit report.

By this point, you have probably thought to yourself that the source of the data must be coming from the default trace.  If you thought that, then you are correct.  It is a good presumption based on a knowledge of what kind of data is being tracked in the default trace.  But I really wanted to know for certain what the source of the data was.  As I perused the XEvent session data, I noticed several queries similar to the following in the results.

XE_Capture

Yes, I am using the GUI (*shrug*) in this image to explore the data from the session.  That is just for display friendliness.  But, as you look through those queries you start to see a few patterns and some obvious signs that the source of the data is the default trace.  Here is a cleaner look at the code being used to get the data-set.

Now, I must confess that I altered it a bit to make sure it was doing what I thought.  Just a little thing like swapping a missing definition for the table variable for a quick insert into a temp table.  But the reality is, it is pretty much the source code of the report.  It is not the prettiest of code for the source, but it works.

Due to the lack of prettiness to the code and the seemingly overly complex means to get to the end result, I decided I wanted to “tune” it up a little bit.

Now, I have something that is easier to read and maintain (my opinion) and works well.  It can also be used easily enough in an RDL should you wish to create an additional report different from the canned report in SSMS.  Or just continue to use it from within Management Studio and check the results without the overhead of the report presentation.

Audit Database File Size Changes

dbsizechange

Recently I shared an article on how to track the growths and shrinks that occur within database files.  I shared that article here, you should read it before proceeding with today’s article.

Near the end of that article I declared that it was a really good method to track that information within SQL Server 2008.  What if you happen to be on SQL 2012 or SQL 2014 (as of this writing)?  Will it work there too?

Does it Work Past 2008?

It is a good question.  Does that extended event session I shared work in SQL Server 2012 or 2014?  Let’s take a quick look.  I am skipping the setup scripts for that XE session in this article, so you will need to get them from the previous article in order to follow along in this segment.

Before we can investigate if this extended event session will work, let’s take a quick look to confirm that the session is running on the server.  We can do that with a query similar to the following.

Running that query will produce results very similar to the following.

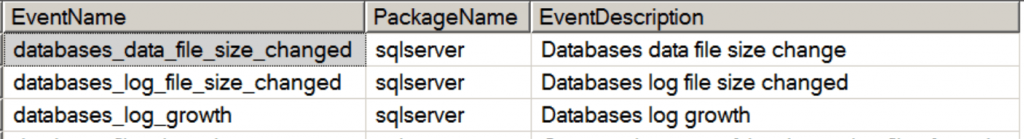

SessionCheck

This is good news.  If you noticed, I am querying a couple of views to get this information.  In the server_event_sessions catalog view I can determine if the event exists.  When checking the dm_xe_sessions DMV, I can see if the session is running or not by whether or not the session exists in the view.  When the session is enabled and running, then the DMV will return a record for it. Otherwise, the DMV does not hold a record for the session.

With a session running, we can now validate if it is running properly by running any script that will cause the files to grow or shrink.  Recall that in the previous article, it was shown that any growth or shrink operation will cause an event to fire with this session.  Here is a sample of the query I am running.

That query has three distinct segments.  The first is just to check my file sizes.  The second segment performs my file shrink operations.  And the final segment checks the file sizes again.  Here is what the first and third segments would look like on the Sandbox2 database that I used in the previous article.

filesizes_vold

With the evidence that we have the session running and that there was indeed a file size change, let’s now check the event session data and confirm whether or not the session is working on this SQL 2014 server.

The preceding is the query I am using to query the session data.  Running that query will produce the following results.

nodata

That’s right!  There is no session data despite the event having occurred and despite the session running currently.  We also know that this session works (we demonstrated it on SQL 2008).  So there must be a bug, something is broken.  Right?

What Now?

Since the extended event obviously no longer works, we are stuck with few options.  We could always try resorting back to the default trace.  After all, I demonstrated that the default trace is already trapping information about file shrinks.  That was discussed in the prior article and here as well.

So, what if we tried to go and capture all of the same information from the default trace?  We could certainly try that.  Assuming that the default trace is still running on the server, this query could get us pretty close.

And this does a fairly decent job of getting the info we seek.  Sadly, though, it does not trap all of the necessary information.  Only the DBCC event (event 116) traps the sql statement that triggered the event to be recorded in the default trace.  But for the most part it can be a decent swing at getting the information.  Without the sql statements tied to the event, I’d rather not use it because it really just shows me how many times the size changed, what time the event occurred, and the size of the change.

There has got to be some other way of getting this to work in extended events.  A good question to ask is “Why does the extended event no longer work?”

A little digging, and one might eventually find a document that can shed some light on the problem.  Reading this document, we can see why the event no longer works.  It has been deprecated.  What?  After one release, they decide to take away a critical piece of information?  How can that be?

Time to back up those findings with something a little more authoritative such as this.  Looking at this article, we see that indeed the event was deprecated.  But wait a minute, the event was not just deprecated, it was also replaced with a new event.  We are in business so let’s do some querying within event sessions.

Back in Business

We could have probably spared some time by checking the available events in SQL Server by using this next query.  However, the events used in the previously used event session still exist.  If they did not exist, the session creation would have failed.  This can be a bit misleading, so it is good to have the information from Microsoft that the events have been deprecated and merged into a single event.

This produces the desired results with the new event name specified in that Microsoft article.

2012filesizeevent

Based on this information, a rewrite of the extended event session is possible and necessary.  We can update the extended event session that audits when a database file changes in size.  This will look something like the following session.

And since I happened to have that session also running at the same time as the shrinkfiles that were run previously in this article, I can go ahead and check to see if anything was captured.  To check the session data, I will use the following query.

In this new event for 2012 and beyond, there is different data that is captured.  This means that I have access to better information about what is happening to my database files with regards to the size changes (growths and shrinks).

Conclusion

If you just so happen to be running on SQL Server 2012 or later, you will need to change your event sessions that were tracking file changes.  It is a bit of an exercise to make the change and can be frustrating, but it is well worth it.  The improved data that can be captured is going to help better control and oversee the environment.

Auditing and Event SubClasses

Categories: News, Professional, Scripts, SSC
Comments: 2 Comments
Published on: May 28, 2014

A recent discussion got me to thinking about Auditing.  To be honest, it got started with a complaint about some documentation that seemed overly light about the various fields related to auditing as it stands in SQL Server.

In talking to the person who raised the valid concern about the lack of good documentation, I was curious why he suddenly had so many questions about auditing and its functionality within SQL Server.  Reflecting on the answers, it seems that it made good sense and it all kind of fell into place with the whole Audit Life Cycle.  I hadn’t previously considered the Life Cycle, but it makes sense to map it out.  Here is a simple rendition of what an audit Life Cycle might entail.





AuditCycle_trans





In order to audit anything, it is necessary to know what you really want to audit, why you want to audit it and how to achieve those goals within the tools given to you.  In that vein, it makes sense that one would need to study up on the topic to figure out what different things meant within the tool.

Of course, once you start collecting that data, then you also need to figure out how to measure it and then to determine if adjustments to the auditing plan need to be made.  In the end, it boils down to what is the data to be collected, what are you doing with that data and what does that data represent.

In our simple discussion, the data trying to be understood was related to the Event Subclass field in this View (sys.trace_subclass_values) and in this Microsoft document (one of several).  The beauty of this field is that it is not just tied to Auditing, but you will also find it in Profiler, server side traces, and Extended Events.

With so little information to help understand what the field values represent, maybe it is better to just turn to the data to help understand what the values might represent or how to interpret them.  To do this, we can query a few catalog views as in the following query.

[codesyntax lang=”tsql”]

[/codesyntax]

With the above query, I can filter down to just the Event Types that have Audit in the name.  Or I could add a different filter so I can try and better understand the different subclasses in a more focused effort.

I hope this helps in your efforts to provide a better auditing or “profiling” type of experience in your environment.



Audit Configuration Changes

Do you know the last time a Server Property was changed on your instances of SQL Server?

Are you wondering when the setting for max degree of parallelism was changed?

Do you know who changed the setting?

In some environments there are a lot of hands trying to help mix the pot.  Sometimes more hands can make light work.  This is not always the case though.  More hands in the mix can be a troublesome thing.  Especially when things start changing and the finger pointing starts but nobody really knows for sure who made the change or when the change was made.

I know, that is why there is this concept called change management.  If you make a change to a setting, it should be documented, approved and communicated.  Unfortunately the process does not always dictate the work flow and it may be circumvented.  This is why auditing is a tool that is in place and should be in place – like it or not.

Auditing can be a very good tool.  Like many things – too much of a good thing is not a good thing.  Too much auditing can be more of a hindrance than help.  You don’t want to cause interference by auditing too many things.  You also don’t want too much data that the facts get blurred.  I hope that this script strikes more of a balance with just the right amount of data being captured to be of use.

The basic principle to auditing server configs is to find what values changes, when they were changed and by whom.  There are ancillary details that can be helpful in tracking the source of the change such as the hostname of the source computer making the change.  These are all things that we should capture.  But if a setting hasn’t changed – then we need not necessarily report that the setting was unchanged (it should go without saying).

So for this, I created a couple of tables and then a script that I can add to a job to run on a regular basis.  I can put the script in a stored procedure should I desire.  I’ll leave that to you as an exercise to perform.

[codesyntax lang=”tsql”]

[/codesyntax]

Here I am trapping the config settings on a daily basis (as the script is written for now). I then cross reference the current settings against the previous settings.  Then I check the default trace to see if any of those settings exist in the trace file.

The default trace captures the data related to configuration changes.  On busy systems, it is still possible for these settings to roll out of the trace files.  For those systems, we may need to make some alterations to the script (such as running more frequently and changing the comparisons to account for smaller time intervals than a day break).

To ensure proper comparison between the audit tables and the trace file, note the substring function employed.  I can capture the configuration name and then join to the audit tables on configuration name.

This has proven useful to me so far in tracking who did what to which setting and when they did it.

I hope you will find good use for it as well.

Security Audit

Comments: 5 Comments
Published on: March 19, 2010

Of late I have seen a lot of questions on how to audit the logins and users on each SQL Server.  I had the same questions for myself when I went through the same exercise some time ago.  My first step was to peruse the internet and see what I could find to get me started.  I found that to be quite helpful.  I found a lot of different scripts that were beneficial.  I, like most, did find one though that I preferred above the rest.  That script can be found here.

Why do I like this script?  I like the format.  It also generates a nice output that can be passed along to auditors.  The output is saved into an html format and seems more presentable to me.  Besides those facets, it meets the base requirements – I can find what roles and users have what permissions in each database on a SQL Server Instance.

The script didn’t quite suit all of my needs.  I think that is frequently the case.  The trick is being able to take the script and make necessary adjustments to suit whatever needs you may encounter.  The changes that I made to this script were in favor of progressing toward an automated inventory solution that I could run from a central location.  The script as it stood required manual intervention.  Granted, I have not yet completed my inventory solution, I have modified the script to work well with 2000 and 2005 and output the results to a properly consumable html file.  Since 2000 and 2005 behave differently in certain regards, I had to add some logic for the script to also behave differently if depending on the version of SQL Server it was run against.  This was necessary since I have SQL 2000 – SQl 2008 in my environment.

Scripts of Change

So, starting from the top.  I decided to use several more variables and create a bunch of temp tables.  The variables will help in the decision making, and the temp tables will help in Data storage for processing as the script runs.  Thus we have this block of code at the top in place of the old Variable block from the original script.

[codesyntax lang=”tsql”]

[/codesyntax]

That is the prep setup so we can now begin the true work of the script.  As, I said there was some decision logic added to the script.  I needed to find a way to determine SQL Server version and based on version execute a different script.  And now we have the decision block.

[codesyntax lang=”tsql”]

[/codesyntax]

Basically, I am checking the version and determining if I should use the SQL 2000 objects or if I can use the SQL 2005 objects since the 2000 objects are scheduled for deprecation.  Also, since xp_cmdshell is disabled by default in SQL 2005, I am prepping to enable that just for the final piece of this script.  Due to the nature of xp_cmdshell, it is advisable that you understand the security risk involved and revert it back to disabled – if you enabled it to run this script.  There are other methods for doing this, I am sure, but I chose this since I got consistent results and have not had time to revisit it.

After that decision tree, I have changed the main body of the script to also use a decision tree in building the dynamic sql.  That tree is built like the following snippet.

[codesyntax lang=”tsql”]

[/codesyntax]

I think you can see at this point some of the differences and why I chose to do it this way.  The final section of code change comes at the end of the script.  This is where the html file is finally built, and then saved out to the file-system.

[codesyntax lang=”tsql”]

[/codesyntax]

In this section, I am enabling xp_cmdshell if necessary.  I am also performing one more necessary trick.  I am using xp_cmdshell to flush bad dns records and ping a remote host.  I will be saving the file off to a central repository and found some bad dns records on my servers while doing this process.  By adding this step, I saved myself quite a bit of frustration in the long-haul.  After that, I use xp_cmdshell to bcp the results out to file.

[codesyntax lang=”tsql”]

[/codesyntax]

This took some work to get the ” ‘ ” all lined up correctly and working properly with BCP.  It was somewhat satisfying when it finally came together.

Now, remember I said you should reset xp_cmdshell back to disabled once completed?  Well, I built that into the script as a part of the cleanup.  I perform this action right before dropping all of those tables that I created.

[codesyntax lang=”tsql”]

[/codesyntax]

Conclusion

I effectively took a well working script and made it suit my needs / wants just a little better.  The initial code was just over 300 lines and I nearly doubled that with this script.  Is it worth the extra effort?  Yes!  Though it took some time and effort to make these modifications, I was able to finish auditing the servers well ahead of pace of doing it by hand.  Furthermore, I can still use this script and continue to reap the benefits of having taken the time to modify it.  Can the script be improved?  Sure it can.  I have a few things in line for it currently.  The biggest piece of it will be modifying it to be run from the inventory package I am still trying to finish in my spare time.

You can download the script in its entirety here.

Edit: Fixed some WP formatting issues.
